Reliance variable frequency dc drive flexpac 3000

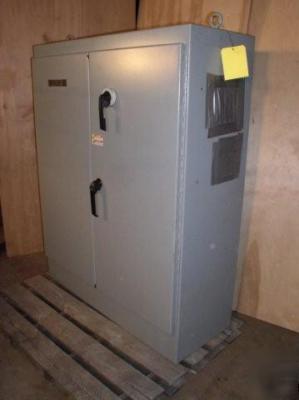

(1) Used Reliance Electric Variable Frequency Speed AC Drive Control Unit 60/125 Hp; Flex Pak 3000; D-CV; S Drive; 50/60 Cycle; Solid State; Mdl.#: 125FR4042
Input Circuit................................................... 230/460
Amp.............................................................. 186
Phases........................................................... 3
Output Circuit................................................ 230/500 VDC
Amp.............................................................. 218
DC Field........................................................ 150-300 VDC 15 Amp
Short Circuit Rating........................................ 25,000 Amp
I.M................................................................ D2-3404
W.D.............................................................. 30372-20
Enclosure Type.............................................. 12
Magnetic Power Shutoff Breaker (175 Amp)
Overall Dimensions:..........................48" L-R x 22" F-B x 63" High (est.)
Weight:............................................... 600 Lbs. (est.)
Price:...$5,950................F.O.B............................Casa Grande, Arizona
