Adp handpunch ID3D-r biometric time clock, used, works

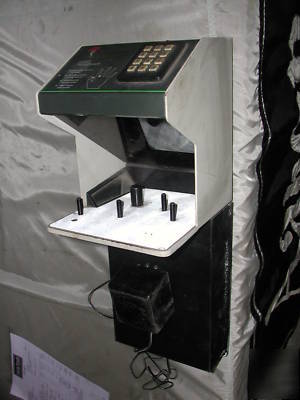

This is a listing for an ADP HandPunch ID3D-R Biometric Time Clock, Used, Works

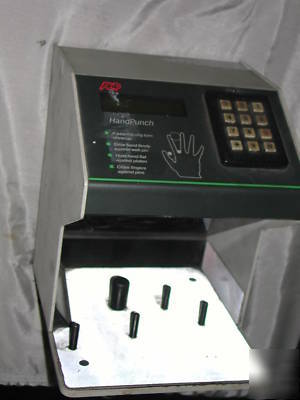

* ADP HandPunch ID3D-R Biometric Time Clock, Used, Works

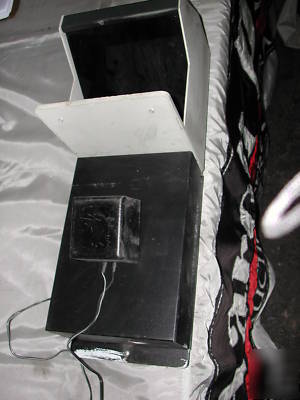

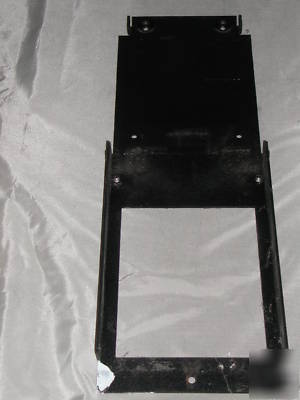

* Mounting Box (that is below the unit, where you put your hand)

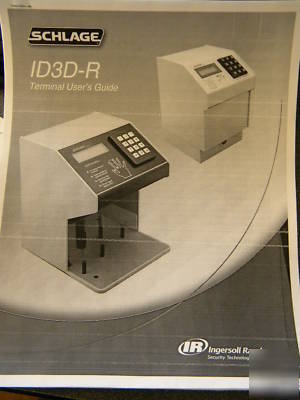

* Printout of the manual from the web here

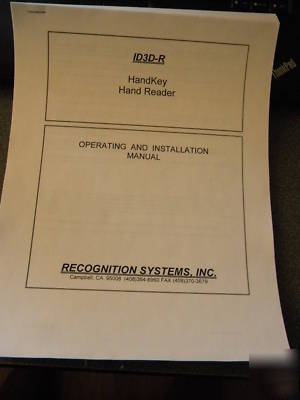

* Printout of the Operating and Installation Manual (Available here and below)
This came out of a working environment.
* Brochure on this type of system on the IR Web site.
* Manual for the Handpunch ID3D-R Biometric Time Clock
* Operating and Installation Manual
* Field-proven hand geometry technology
* Integrates easily into new or existing systems
* Metal housing for extra security
* Recessed wall mount available

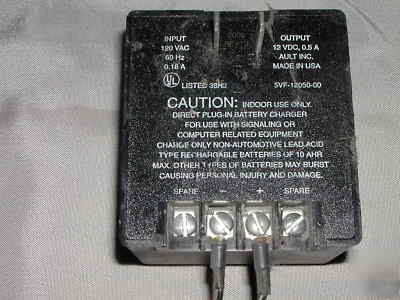

Input Voltage...........12 TO 14 VDC.
Input Current ...........0.450 Amps Min. - 0.5 Amps Max.
Input Power.............7 Watts Max.
Switched 12 VDC at 0.1 Amp maximum for operating a control
relay or low current actuation device. RSI recommends the use
of an isolation relay for this application
Door switch, Auxiliary Input circuit, and Tamper. 0.5 Ma.
Current loops. Breaking circuit produces alarm.
CH-0..........RS-422 or RS-485
CH-1..........RS-232 (Printer only)
IDENTIFICATION NUMBER INPUT DEVICE:
A keypad for ID number entry is built in. Wiegand and magnetic
stripe card reader input are also available.
ID numbers may be 1 to 10 digits in length.
Wiegand compatible output is available for host system
interface. Upon verification of identity, the entered ID number
along with the site code, is transmitted in 26 bit Wiegand with 8
bit site code format to the optional Wiegand compatible host.
Other formats and magnetic stripe (ABA/ANSI track 2)
compatible outputs are also available in a +5VDC = data high
A 26 bit Wiegand format is standard. The first bit transmitted or
received is even parity over the next 12 bits. The last bit is odd
parity over the preceding 12 bits. The 2nd through 9th bits are
the assigned facility code with the 2nd bit most significant. The
10th through 25th bits are the ID number entered at the keypad,
with the 10th bit most significant. The card reader emulation
port transmits Wiegand data with a pulse width of 100
microseconds and an interpulse period of 1200 microseconds.
Other code formats can easily be accommodated, but the
factory must be consulted first.
Memory is available to store hand data for a minimum of 256
users. This is expandable to 3,328 or 9,728 or 27,904 users.
until transmission of stored data is requested by the host
A Request To Exit switch or keypad (KP-103) may be
connected for secure side exit.
32 to 110 F. Limited by platen
HAND READ AND VERIFICATION TIME:
User programmable on system and individual user basis.
