50 cu ft aluminum tote flo-bin & slide gate valve

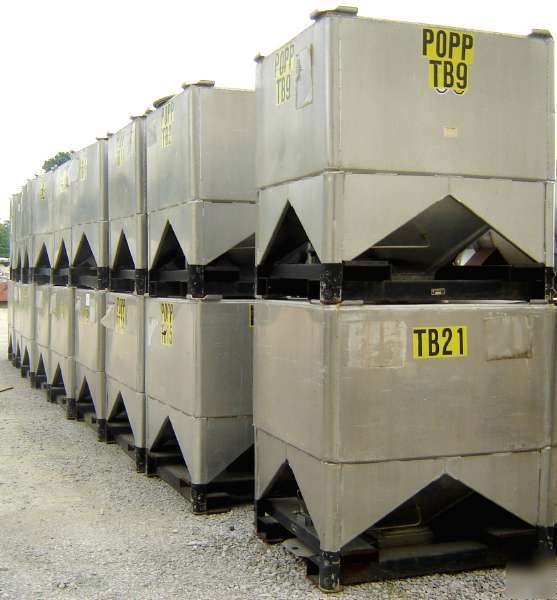

50 CU FT ALUMINUM TOTE FLO-BIN & SLIDE GATE VALVE
52" X 44" X 30" HIGH STRAIGHT SIDE RECTANGULAR BIN AREA. TAPERED 52" X 44" X 24" HIGH BOTTOM TRANSITIONS TO A 12" X 12" SQUARE OUTLET EQUIPPED WITH A MANUALLY ACTUATED SLIDE GATE VALVE FOR CENTER DISCHARGE. UNITS HAVE AIR PADS IN HOPPERS FOR DISCHARGE ASSISTANCE. TOP INLET IS 23" DIAMETER WITH COVER AND SEAL RING. MAIN MATERIAL CONTACT BIN CONSTRUCTED OF ALUMINUM WITH CARBON STEEL SUPPORT STRUCTURE. BINS ARE STACKABLE AND DESIGNED WITH FOUR WAY ENTRY FORK TRUCK PORTABILITY. OVERALL HEIGHT 56.5" X 52" WIDE X 44" FRONT TO BACK. BINS WERE MANUFACTURED BY FABRICATED METALS, INC. SAN LEANDRO, CA / MODENA, PA.
