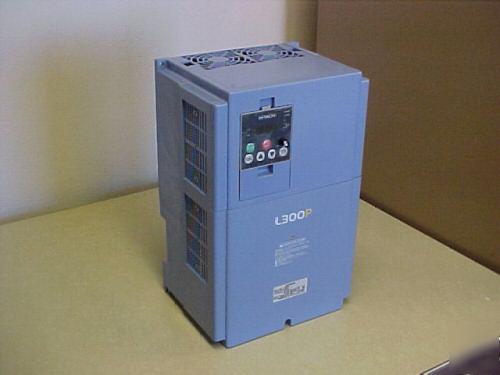

30 hp, vfd, variable frequency ac motor speed drive


380 ~ 480VAC Three Phase Input.
If you have 200 ~ 240VAC Input:
HITACHI L300P Series is a Variable Torque Drive
V/F optionally variable, constant torque, and reduced torque of V/F control.
120%, 30 Seconds 150%, 0.5 Seconds
0.1 - 3600 sec. (linear/curve, accel./decel.), Two stage accel./decel. setting available
Built-in BRD circuit (Optional resistor) for 15, 20 HP only. External dynamic braking unit (option) for 25 HP & above. Braking resistor is not integrated in the inverter. Please install optional braking resistor or dynamic braking unit when large control torque is required.
Performs at start; under set frequency at deceleration, or via an external input (braking force, time and operating frequency)
Up(1) and Down(2) keys/value setting keys.
DC 0 ~ 10 VDC, -10V to +10V (input impedence 10k ohms), 4 ~ 20 mA (input impedence 100k ohms)
Run key/Stop key (FW/RV can be set by command)
FW RUN/STOP (NO contact), RV set by terminal assignment (NO/NC selection), 3-wire input possible
Selection of 5 functions from: RV (Reverse), CFI~CF4 (Multispeed command), JG (Jogging), DB (External DC braking), SET (Second motor constants setting), , 2CH (Second accel./decel.) FRS (Free-run stop), EXT (External trip), USP (Unattended Start Protection), CS (Change to/from commercial power supply) SFT (Software lock), AT (Analog input selection), RS (Reset), STA (3-wire start), STP (3-wire stop), F/R (3-wire fwd./rev.), PID (PID On/Off), PIDC (PID reset), UP/DWN (Remote-controlled accel.decel.), UDC (Remote-controlled data clearing), SF1-SF7 (Multispeed bit command 1-7), OLR (Overload limit change), and NO (Not selected)
Two NO contacts and one NO-NC combined contact (Selection from: RUN, FA1, FA2, OL, OD, AL, FA3, IP, UV, RNT, ONT and THM)
Output frequency, output current, scaled value of output frequency, trip history, I/O terminal condition, input power, output voltage.
V/F free setting (up to 5 points), frequency upper/lower limit, frequency jump, accel/decel curve selection, manual torque boost value and frequency adjustment, analog meter tuning, start frequency setting, carrier frequency setting, electronic thermal free-setting, external frequency output zero/span reference, external frequency input bias start/end, alalog input selection, retry after trip, restart after instantaneous power failure, various signal outputs, reduced voltage start, overload restriction, automatic energy saving.
Over-current protection, overload protection, braking resistor overload protection, over-voltage protection, EEPROM error, under-voltage error, CT(Current transformer) error, CPU error, external trip USP error, ground fault, input over-voltage protection, instantaneous power failure, option 1 connection error, option 2 connection error, inverter thermal trip, phase failure detection, IGBT error, thermistor error
EMI filters, Input/output reactors, DC reactors, Radio noise filters, Braking resistors, Braking units, LCR filter, Multilingual operator with copy function, Communication cables, Option PCB
