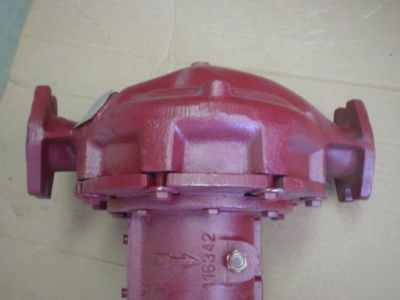

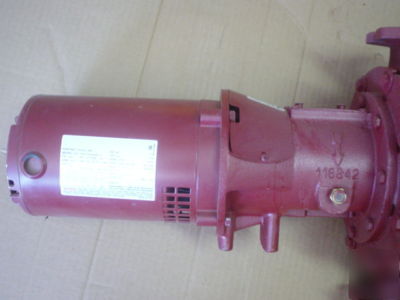

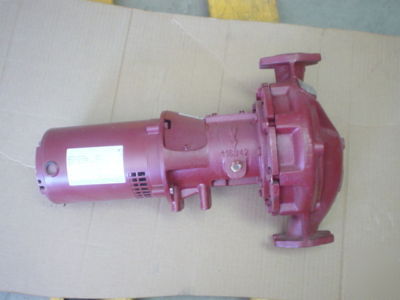

New armstrong h-63 in-line circulator pump nrand

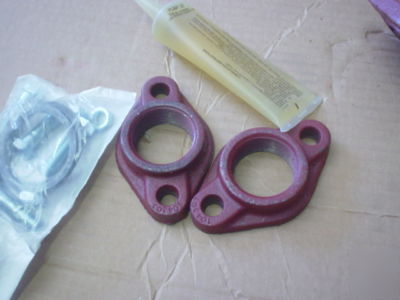

Model # H-63 Motor 1/2 Flange Size 1-12" Weight 86 Lbs This is a Brand New Armstrong H-63-1PH BF In-Line Circulator Pump. Purchased in 2006 for about $1500, it was never used. Comes with manual, flanges and pump oil This circulators features the unique Armstrong shaft and bearing module for ease of serviceability and maximum interchangeability. Oversized shafts of alloy steel machined to exact tolerances. Impellers are constructed from non-ferrous material and are designed for optimal water delivery. Available in bronze-fitted and all-bronze construction. Armstrong H-63-1PH BF In-Line Circulator Pump Features:
Modular Construction Armstrong H-63-1PH BF In-Line Circulator Pump Specifications:
BF = Bronze Fitted (Cast Iron) / General heating & circulating
o Shaft - Alloy Steel-Copper Sleeve
o Mechanical Seal Assembly - Carbon Brass Trim - Ceramic Seat
Maximum Operating Temp. - 225 F (107 C)
Maximum Working Pressure - 175 psi (1207 kPa)
o Volts & phase - 115/230 Volt 1 phase Centrifugal Impeller
Balanced impeller of centrifugal design ensures maximum water delivery. ARMSTRONG circulating pumps have oversized shafts of special alloy steel, machined to exacting tolerances. Shafts have integral thrust collars, heat treated to provide long life under severe duty conditions Radially-split body can be left in the line while servicing the pump, eliminating needless disconnecting of pipes
