Pxb-5K0 - 5000HZ high-pass crossover

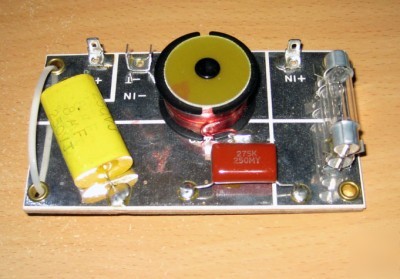

PXB-5K0 - 5000Hz High-Pass Crossover
Designed to work in high-power cabinets, px crossovers are technically superior passive filters available as board-only or complete with fitted hardware for a smart, economical `factory-fit` finish.
Designed and built for Eminence, px crossovers feature advanced circuit design to both preserve the crossover and your HF drivers.
In px crossovers, current is limited when the hf level control is set to* " 0" on its scale (max. -9dB attenuation).* A secondary benefit of the design is to form a voltage divider across the HF driver. * The High-Pass Protection uses custom-built aerospace lamps as positive temperature coefficient series varistors.
The tungsten filaments effectively track the program material, dynamically maintaining a safe maximum current level to the HF driver without introducing distortion.* This circuitry provides smooth 3:1 analog compression during input overload conditions over 250Wrms.* At full drive level approaching clipping, the electrical attenuation to the protected HF driver is -4.5dB.* In every way, Eminence px crossovers are a technically superior product.
* Slope:18dB/octave Butterworth
