Tektronix 2714 catv spectrum analyzer 75OHM 9KHZ-1.8GHZ
Tektronix 2714 CATV Spectrum Analyzer
The 2714 Cable TV Spectrum Analyzer provides the ultimate in ease and economy for cable TV and broadband LAN measurements. It s cable ready with a 75-ohm BNC input that can be quickly changed to a 75-ohm F-connector input. Measurement results can be output to a printer or plotter connected directly to the 2714 s interface port. The PC-based software package that accompanies the 2714 runs automated cable TV measurements via an RS-232 or GPIB interface and provides a perpetual database for tracking performance. Frequency Range: 9kHz to 1.8GHz ( software not included )
Dynamic Range +20 dBm - -139 dBm
Frequency Range 9 kHz - 1.8 GHz
Resolution Bandwidth 300 Hz - 5 MHz
Video Bandwidth 3 Hz - 300 KHz
Some of the HAM related applications:
You can program up to 10 keystroke memory presets to go to commonly used settings, you also can set the scan to zero and demodulate AM and FM signals. In other words this can be used for a wide range receiver. The 300 Hz resolution allows this to be used effectively for two-tone distortion testing within the audio bandwidth of ham transmitters. Another feature is that this can be used for field strength measurements calibrated in dBuV/meter.
This unit works fine and passes all of its normalization routines Guaranteed, 7-Day Right-of-Return, assuming that void stickers are intact

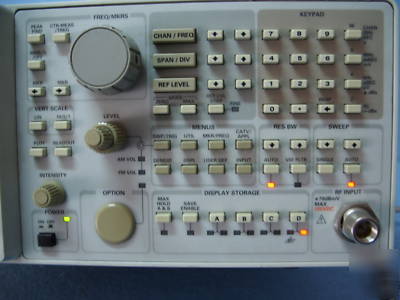

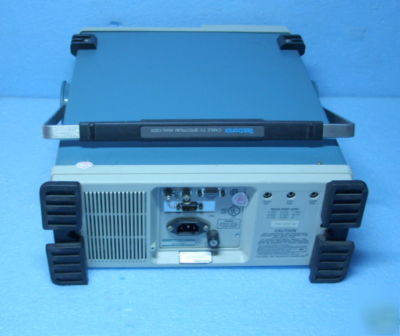

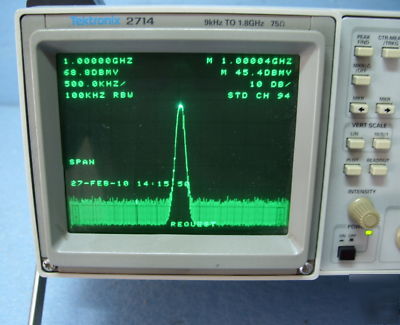

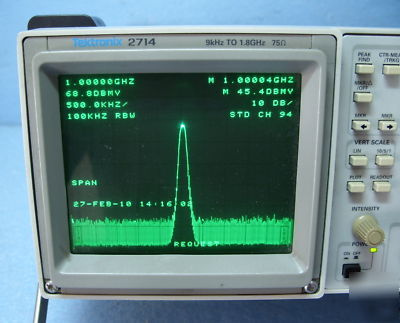

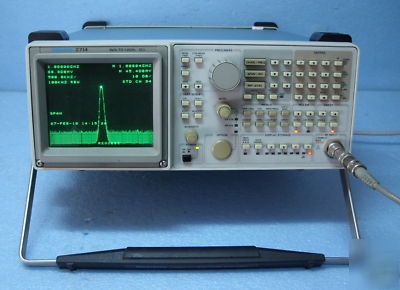

Channels: 16 Comes as pictured; test cable is not included.
