Starrett 831C small hole gage .300-.400 blemished 53085
MAKE YOUR BEST OFFER TO TAKE THEM ALL.

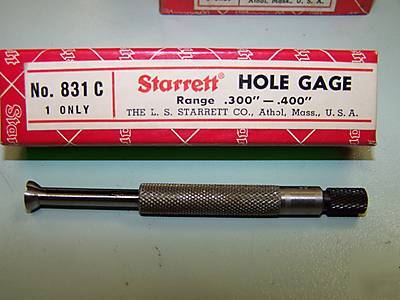

Starrett 831C Small Hole Gage .300-.400 blemished 53085
These small hole gages are well balanced tools that are ideal for accurately measuring small holes, slots, grooves, and recesses in all kinds of work. They all feature:
* Hardened-ball measuring surface with two-point contact
* Radius on each gage is less than the minimum diameter to be measured, which provides the two-point contact necessary for maximum accuracy
* Smooth, sensitive adjustment for better feel, giving more accurate measurements
* The adjustment of the gage beyond their range is restricted by a safety stop that prevents breakage
Accurate measurements are obtained by slightly "rocking" these gages in the hole to be measured. This will guarantee contact at the true diameter. The final size is then obtained by measuring over the ball contacts with a micrometer.
These gages are exactly the same as the No. 829 Series except that the gaging surface is a half-ball with a flat bottom. This permits use in even the most shallow holes, slots, and recesses.
