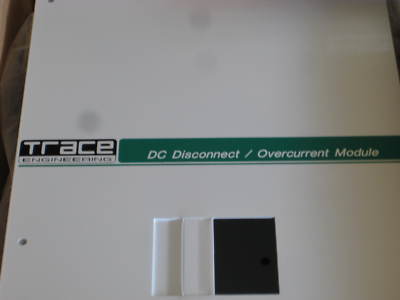

TRACE BNIB - 175 Amp DC Breaker w/Enclosure
Battery disconnect; an easy way to isolate inverter and battery
* Meets national electrical code requirements for "means of disconnection"
* doesn t need ring terminal lugs
Current Protection; DC circuit breakers UL for up to 125 VDC
* Extremely low voltage drop (less than most fuses or current shunts)
* rated for interrupting high fault current (up to 25,000 amps at 65 VDC)
* room for four (4) additional small breakers
Optional Second Main Breaker Accommodates Dual Inverter Systems
* second breaker can be field installed
* space allows for DC current shunts
Optional Bonding Block Simplifies Wiring & Grounding
* Bonds negative conductor to grounding system at single point
* Lugs to terminate four 4/0, 2 # 1/0, two # 2 and four #4 cables
Four Auxiliary Breaker Positions
* Optional 15 amp DC breaker for small DC loads or equipment room light
* Optional 60 amp DC rated breaker for PV array, disconnect, charge controller, etc.
* UL listed for DC systems up to 125 VDC
* Rated for interrupting high fault current, up to 25,000 amps at 65 VDC
* Easily accessible #10-32 stud terminals
* Maximum DC load on circuit breakers: 175 amps
* Maximum DC system voltage: 125 VDC
* Maximum high fault system interruption at 65 VDC, 25,000 amps
* Maximum high fault system interruption at 125 VDC, 10,000 amps
* Maximum stranded wire size # 4/0 AWG
* Allowed temperature range -40 degrees to 104 F (-40 to 40 Centigrade)

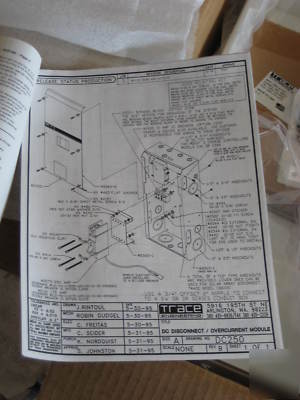

* Enclosure type: Type 1, indoor powder coated steel with 2 inch knockouts on the
Top of the enclosure for 2 Xantrex (Trace) C series charge controllers or for conduit connections to Xantrex (Trace) inverters

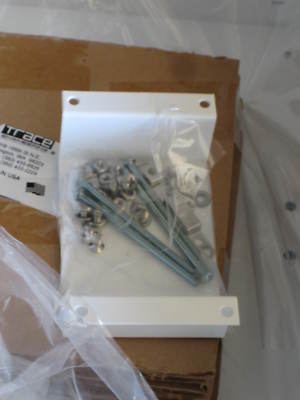

* Mounting, indoor wall mount, with breakers in a vertical position only (Mounting hardware included)
ALSO INCLUDED IS A TRACE 175 DC BREAKER FOR SPECIFIC USE IN THE TRACE DC 175.

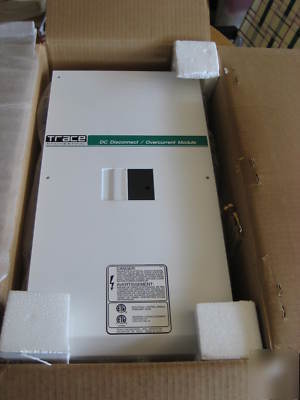

New, the retail cost for the DC 175 Breaker Box as pictured, $275.00, and the extra Trace 175 DC Breaker cost $175.00. Original retail invoice can be included to establish cost. These were purchased originally to be used together, a 2nd 175 DC Breaker and the DC 175 Breaker box were to be installed in a whole house solar system, using two (2) Trace DR 1524 (1500 watt) Inverters.

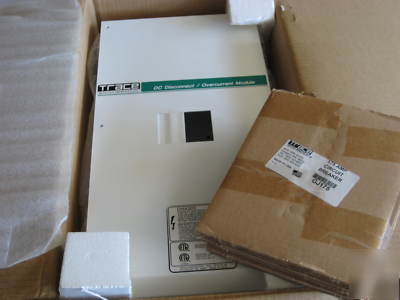

See other listings as the two (2) brand new inverters are also listed for sale. This DC 175 Breaker Box is brand new, it comes in the original box and was never mounted or used. The same is true with the extra DC 175 Breaker meant to connect to the dual inverters - none of these items were ever used as the vacation home was never built.
