Hampden bps 36/18F science 12 24 v lab power supply 36

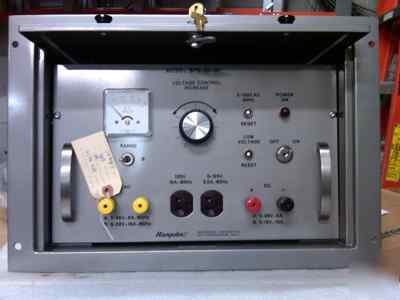

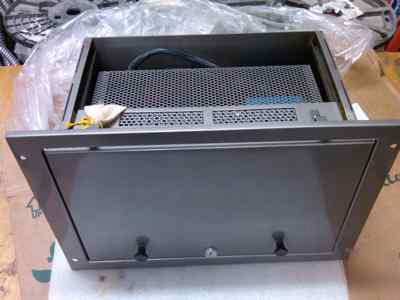

The MODEL BPS-36/18F (flush) Power Supplies are designed foruse in Science Laboratories where a source ofvariable DC voltage (up to 36 volts at 5amperes) is required, as well as up to 10amperes at lower voltages. A built in voltmeterprovides a continuous indication of outputvoltage.DescriptionInput power of 120V, 60Hz is supplied througha 3-wire, #16 rubber covered cord. Units areenergized by means of a keyed switch withassociated pilot light. All low voltage suppliesare isolated, and, unless otherwise specified,terminate to Hampden high quality, tamperproof,captive head 5-way binding posts, whilethe fixed and variable 120V AC outputs terminateto a standard grounding type duplex receptacle.Variable outputs are protected by thermalmagnetic circuit breakers.Each unit is supplied with a set of two (one red,one black) Hampden PC-3 cords, 3 ft. long,having a stacking banana plug on one end anda hooded alligator clip on the other. All units areguaranteed against electrical and mechanicaldefects for one year from data of acceptance.Listed by Underwriters Laboratories, Inc.Hampden BPS-36/18F providesthe following services: 0-36V DC 5A (1% RMS) 0-18V DC 10A (2% RMS) 0-45V AC 5A 0-22V AC 10A 0-120V AC 3.5A 120V AC 10A Regulation: 4V NL-FL (either range)
