Roofing slate jenny twin clip slate fixing system
In bags of ten pairs clips ( 10 pieces) (1 top + 1 bottom clip) per bag suitable for repairing ten slates. The Jenny Clip is a simple and sturdy aluminium clip once fixed on to the slate will allow you to slide the slate back into position then the clip hooks on to the batten and can not be removed.

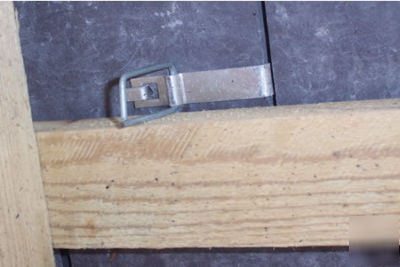

The Jenny Twin clips are secured by drilling or punching through the slate. The tongue of the clip is then passed through the slate and bottom leg of clip and bent over. The slate is then laid flat on the roof and pushed into position. Once the clip has passed the batten the swivelled tail will drop into place, securing the slate The clips can be seen located behind the batten, ensuring the slate remains permanently fixed in the correct location.
The System is designed as a fixing method for isolated repairs where it is not possible for slates to be secured with nail fixings.It is suitable for use on all types of slate roofs where slates are fixed to open battens up to a maximum pitch of 70 degrees.
The Jenny Twin is made up of two individual sections; the main body which fixes around and through the slate, and the swiveled tail which secures the slate behind the batten.
Main Body:- This is cut, punched and formed from aluminium strip to EN485, EN515, EN573 (Designation 1050A-H14), 1.5mm thick.
Swiveled Tail:- These are cut and shaped from 2.0mm stainless steel wire to BS1554 321 S31
