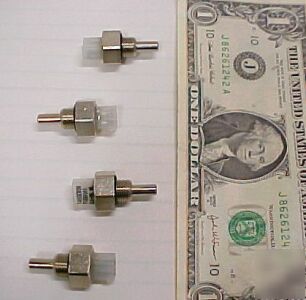

New 4 tasseron temperature sensors, part no. TSD00A1
We received these in a plain, unlabeled box from a lost freight sale. They appear to stainless steel and they do not attract a magnet. There are two pin connectors in a plastic receptacle, on which is written: TASSERON TSD00A1 03-06 NL. I'm guessing that's the company, the part number, the manufacturing date, and the country of manufacture (Netherlands).
Length excluding connector: 1.010"
Length of threads:&ndsp; .225"
Nut size (across flats): .590"
Diameter of sensor element (tip): .182"
They apparently seal against a rubber O-ring fitted into a recess beneath the body/nut.&mnsp; The thread seems to be metric (M10 x 1.0, according to my thread guage). "TSD" is one series of temperature sensors manufactured by Tasseron, however I could not find anything on their website which exactly matched this part number.
Here's a chunk of text from the Tasseron website which might (or might not) help:
Immersion direct temperature-sensors
OEM, custom-made in high quality, corrosion-
resistant materials, brass, aluminium, ceramic
and stainless steel. Multiple mounting-methods/
threads and integrated connectors available.
Standard thermistor/RTD sensing-elements
single or duplex configuration applicable.
Temperature-range up to 125 C/257 F
OEM immersion temperature sensors for direct temperature measurement
- miniature OEM temperature sensors
- direct measurement of the medium s temperature
- quick response time, high accuracy
- temperature range -20...180 C maximum
- broad selection of measurement elements, connectors and mounting methods
This product series differentiates itself by an extremely broad selection of measurement elements (NTC, PTC, RTD etc.), the electrical connector, shape, choice of materials, and the means of connecting the sensor mount to the application.
Besides the standard (single) model with one measurement element for use as either a controller or a safety sensor, there are also models with two separate measurement elements (duplex) for use as combined controllers and safety sensors or with a combination of a measurement element and thermostat.
Typical domestic and industrial applications include regulating temperature and controlling safety in central heating systems and boilers, compressors, motors, ovens, heat exchangers, heat pumps, kitchen equipment and humidifiers.
Thermal resistance-element integrated in turned, moulded or welded housing
NTC, PTC (KTY), Pt, Ni. in single, 2-wire or double, 4-wire (duplex) version
Aluminum, brass, stainless steel, copper, moulded plastic or ceramic
1/8 ,1/4 ,3/8 ,1/2 NPT-BSP threads, metric threads, bajonet or push-in available with integrated O-ring sealing
Integrated fast-on tabs, 2 pole 2.8 x 0.8 (0.5)mm, 4.8 x 0.8 (0.5)mm, 6.3 x 0.8mm integrated connector, 2- or 4 pole Amp/Tyco-Modu, Faston-Fastin, Lumberg-MSF, Molex Minifit/Microfit, RAST-5
