3 detex ecl-230D door alarm exit control lock devices

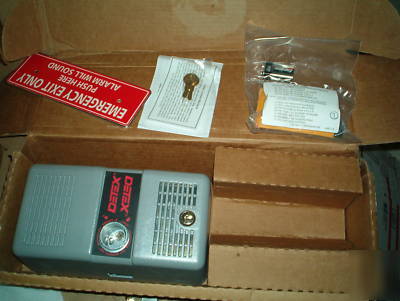

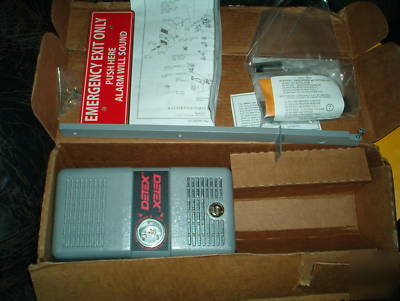

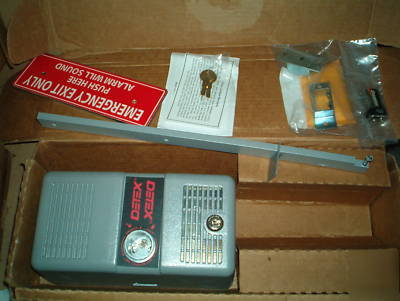

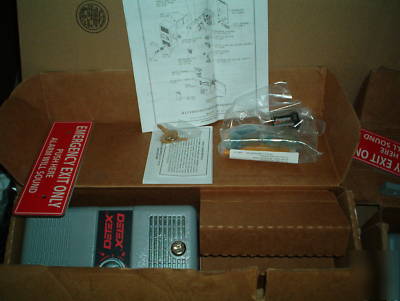

this sale is for LOT OF 3, DETEX, ECL-290D EXIT ALARM DEVICES, These items are new in heavily distressed factory boxes. They are complete kits but one of them is missing the instructions. Please note that this device is not furnished with a Core Rim cylinder (please see details below)
The Detex ECL-230 series has been the industry standard alarmed exit control lock since it was introduced. It is easy to install, rugged, and economical; the ECL-230 series has been continuously updated to provide options, quality, and value, all in this time tested design.
* Attack resistant design that withstands over 2200 lbs. of outside pull force
* Proven durability and reliability at a reasonable price
* Time-tested construction resists attack from the inside
* Easy to see if/when the lights go out
* Straightforward operation that everyone can understand
* Single point, 1" throw dead bolt
* Corrosion resistant alloy lock body
* Accepts 5-pin through 7-pin standard and interchangeable core rim cylinders (NOT included)
* Durable steel plate with photo luminescent sign absorbs light so it will "glow in the dark" when lights are dimmed
* Locking and unlocking the dead bolt always arms and disarms the alarm
* Resetting the alarm can only be accomplished with the control key
* Door Types - Wood, Hollow Metal or Aluminum
* Door Thickness - Fits standard 1-3/4" - 2-1/4"
* Minimum standard door width for ECL-230D is 20"
* Minimum standard door width for ECL-230D-PH is 34"
* Double Door requirements: 1 ECL-230, 1 ECL-445K, 1 ECL-435K and 1 DDH-2250 (or 1 VRA-143 in place of 1 ECL-435K and 1 DDH-2250) or 2 ECL-230, 1 ECL-445K and 1-90KR
* Door Stile - Fits minimum 5-3/4" with ECL-437K Strike (Standard.)
* Door Stile - Fits maximum 1-7/8" with ECL-475 Kit
* Machine and Sheet Metal Screws (Standard.)
* Optional Sex Nuts or Security Torx Screws are available
