Honeywell 24V general purpose relay with dpdt switching

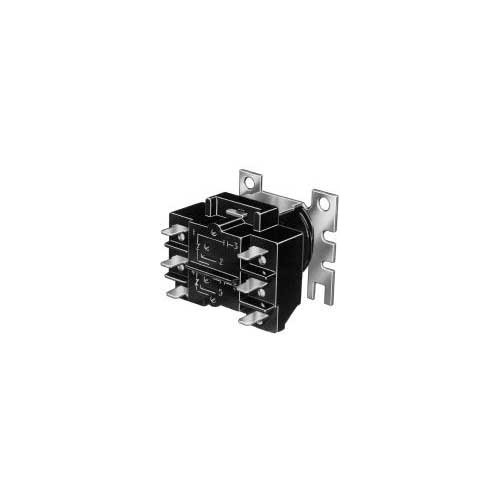

Honeywell 24V General Purpose Relay with DPDT switching R8222V1003
Provide general purpose switching for refrigeration and air conditioning equipment, appliances, vending machines and similar applications.
* Molded terminal numbers and circuit diagram on top of relay provide easy identification for wiring and checking system operation.
* Untaped coil assures cooler operation.
* Laminated magnet construction for higher efficiency.
* Base designed for easy replacement of competitive relays.
* Double quick-connect coil terminals.
* Plug compatible with Steveco 90-340 and Mars 90340.
* Description: 24 V General Purpose Relay with DPDT switching
* Switching: DPDT (1 P&1PDuty)
* Electrical Connections: 1/4 in. quick-connect terminals
* Electrical Ratings Contacts (Full Load): 3 A @ 480 Vac; 6 A @ 208 Vac, 240 Vac, 277 Vac; 12 A @ 120 Vac
* Electrical Ratings Contacts (Locked Rotor): 18 A @ 480 Vac; 35 A @ 208 Vac, 240 Vac, 277 Vac, 60 A @ 120 Vac
* Electrical Ratings Contacts (Resistive): 10 A @ 480 Vac; 20.8 A @ 120 Vac, 208 Vac, 240 Vac, 277 Vac
* Pilot Duty Ratings: Minimum: Minimum: 3 VA @ 24 Vac, 120 Vac, & 480 Vac; Maximum: 25 VA @ 24 Vac, 125 VA @ 120 Vac, 240 Vac, & 480 Vac; Resistive: 3 A @ 277 Vac (0.75 power factor); Powerpile: (Normally Open Contacts Only) 0.25 A @ 0.25 to 12 Vdc
* Dimensions: 1-7/8 in. high x 2-5/32 in. wide x 2-3/8 in. deep
* Temperature Ratings: -20 F to +155 F
