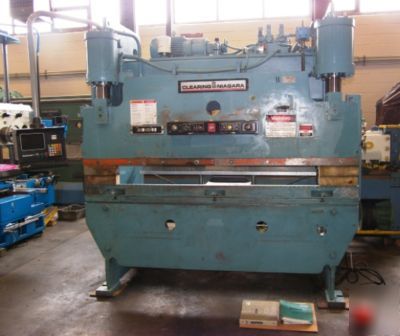

Niagara 8' x 100 ton hydraulic press brake '98
Preowned 8' x 100 Ton NIAGARA Hydraulic Press Brake, Model: HBM-100-6-8,
Clear distance between housings
Rated bending capacities, mild steel
8' x 3/16" over 1-1/2" die opening
5-1/2' x 1/4" over 2" die opening
4-1/2' x 5/16" over 2-1/2" die
HURCO Autobend 7 two-axis CNC control of back gauge and ram, dual handwheels
for tilt of back gauge, and (6) adjustable lateral fingers
Bed and ram machined for 5-3/4" angle brackets
Remote electric foot pedal or ram mounted dual electric palm buttons
Key-lock selector switches for stroking selection (Off/Inch/Single Stroke), actuating
means (Hand/Foot), return stroke selection (Manual/Auto), and speed selection
(Anti-Backbend or Rapid to Anti-Backbend)
Ram Arrest Control - Adjustable Down Stroke Stop - with key lock selector switch
Set-Up Control with key lock selector switch (Off/On)
Ram tilt control with micrometer adjustment
Full complement of sectional upper die clamps
Dovetail Slot on front and rear of bed and front to back t-slots
Self-lubricating non-metallic gibs
7.5 H.P. 3/60/230-460 volt main drive motor and electrical controls
