New magnetic slotted switch hall effect

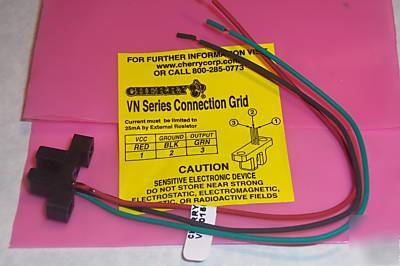

On offer is Qty. 1 Hall effect slotted switch
These switches are direct replacements for slotted opto switches for use in more arduous environments. They have a magnetic sensor in one leg and a magnet in the other. When a magnetic material is placed in the gap this couples the magnetism to the detector and turns off an open collector transistor. The internal operating magnet has quite a strong field providing good immunity to external magnetic fields. I tested some of these parts using a piece of 1mm mild steel as magnetic medium and this worked ok.
Connect a 5 to 12V supply +to red wire, -to black wire. Connect a 1Kohm pull up resistor between the supply and the green wire. The junction between the resistor and the green wire is the output, near +supply with the gap closed by a magnetic material, 0v with the gap open. This will drive logic or a MOSFET interface directly. Take care not to exceed the max. current of 25mA in the output lead.
* Similar to slotted opto switches but use magnetic coupling as a medium to operate switch.
* Immune to the effects of dust oils, moisture etc. and may be used outdoors
* This is a sealed unit capable of immersion in water for short periods
* Standard NPN transistor output.
* Useful as solid state replacements for limit switches, robotics etc.
* Dimensions: Gap 8mm high x 4mm wide. Fixing centres 20mm holes for 2 x M3 screws. Leads 150mm long
