Kluge ez feed 5 glue & fold --this is a must see --
Length . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. 157" (399 cm)
Width . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43" (109 cm)
Height . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50" (127 cm)
Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 750 lbs (340 kg)
Operating Speed . . . . . . . . . . . . . . . . . . . . Up to 2,000 - 3,000 pph
Maximum Sheet Size. . . . . . . . . . . 29"w x 24"l (73 cm x 61 cm)
Minimum Sheet Size . . . . . . . . . . . . . . .6"w x 6"l (15 cm x 15 cm)
Stock Range . . . . . . . . .6 pt. to 18 pt. cover, coated or uncoated
Electrical . . . . . . . . . . . . . . . . . . . . .120 vac, single phase, 20 amp
Air. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90 psi, 4 cfm

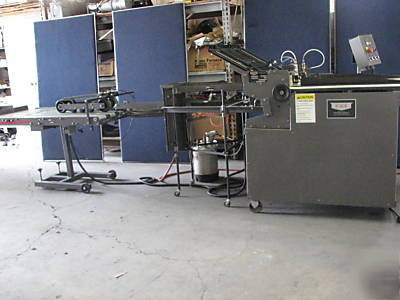

The EZ-Feed series is designed to meet a variety of product needs. Each model can produce a wide range of pocket folders, from standard sizes to specialty formats. But the EZ-Feed delivers far more than just standard pocket folders. Depend on it to fold and glue sail-style pocket folders, reinforced folders, standard CD wallets, airline ticket envelopes, three panel folders and boxes. Your cost-savings potential is solid, with one piece of equipment that delivers so much.

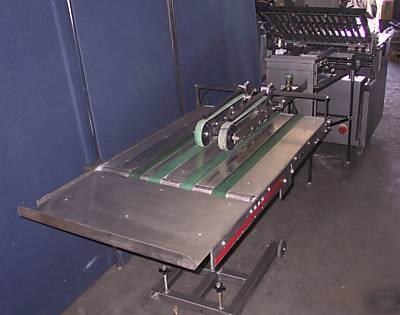

The Kluge EZ-Feed features superior technology, user-friendly design and a standard Valco air-pressure, non-contact, cold glue system. Compact, mobile and easy to operate, the EZ-Feed is available with the Final Fold unit as part of the basic unit, or it can be removed. The EZ-Feed includes a main unit, the Valco gluing system, a Stack-A-Veyor stacker unit and a Final Fold unit. Operating speed is up to 2,000 - 3,000 pieces per hour.
Pictures do not do it justice!!
