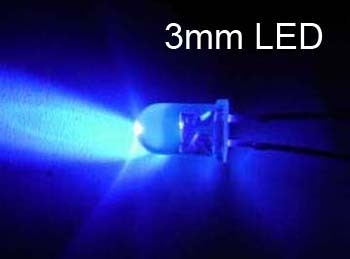

10PCS 3MM blue 5000MCD ultra bright leds
* Emitted Colour : Blue
* Size (mm) : 3mm
* Lens Colour : Water Clear
* Peak Wave Length (nm) : 465 ~ 470
* Forward Voltage (V) : 3.2 ~ 3.8
* Reverse Current (uA) : <=30
* Luminous Intensity Typ Iv (mcd) : Average in 5000
* Life Rating : 100,000 Hours
* Viewing Angle : 20 ~ 25 Degree
* Absolute Maximum Ratings (Ta=25 C)
* Max Power Dissipation : 80mw
* Max Continuous Forward Current : 30mA
* Max Peak Forward Current : 75mA
* Reverse Voltage : 5~6V
* Lead Soldering Temperature : 240 C (<5Sec)
* Operating Temperature Range : -25 C ~ +85 C
* Preservative Temperature Range : -30 C ~ +100 C
Forward Voltage (V)
Peak Wave Length (nm)
Luminous Intensity Typ Iv (mcd)
Reverse Current (uA)
Peak Wavelength (nm)
Average in 10000
RED GREEN BLUE FLASH
Forward Voltage(V)
Average in 15000
