Magal / senstar starled 200 infrared led illuminator
DON'T MISS OUT ON THIS OPPORTUNITY TO OWN AN INDUSTRIAL GRADE COVERT ILLUMINATION PRODUCT. THE RANGE, LONGEVITY AND CONSTRUCTION CANNOT BE
MATCHED BY INFERIOR PRODUCTS OFFERED BY OTHERS. RETAIL COST IS OVER $900ea. GET IT FOR LESS, A LOT LESS.

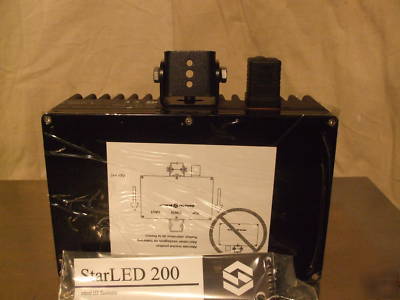

StarLED 200 is the most advanced illuminator
available. It is a solid-state infrared LED (Light Emitting Diode) illuminator that creates light which, while invisible to
the naked eye, illuminates targets for surveillance by standard infrared sensitive CCTV cameras.
StarLED 200 provides the longest range infrared LED illumination available and has the most uniform coverage. The light it creates is eye-safe at all distances, even for
technicians working up close. With a ten year life expectancy on the diodes, it also has the lowest life-cycle costs in the industry. Operation and maintenance costs
are minimal because the unit consumes very little power, generates little heat and has no bulbs to replace.
StarLED 200 is available in both Spot and Flood illumination patterns at a wavelength of 875 nm. When looking directly at the front plate on a dark night with no other
lighting present, a faint red glow can be seen. All models have a built-in twilight switch.
StarLED 200 is the low power answer for supplemental lighting for those sites suffering from inadequate levels or non-uniformity in their conventional lighting system. StarLED 200
can be strategically placed to provide fill-in illumination without the need for expensive wiring upgrades. It is also ideal for those sites where local codes limit the intensity of
These features make StarLED 200 the ideal tool for security professionals seeking covert illumination from a reliable, high performance illuminator.
250 x 160 x 100 mm (9.8 x 6.3 x 4
100 - 240 VAC, 50/60Hz, 60 W
Aluminum housing w/IR transparent
Built-in twilight switch activates the
illuminator at light levels between 300
and 500 lux. Switch can be deactivated
via jumper to ensure that unit is
a minor change in the illumination
profile as a result of a failed LED
asymmetrically with unique lensing to
-40 to + 50 C (-40 to +122 F)
Integrated over temperature protection
will switch off illuminator at +70 C
protection type IP 54/NEMA 3;
protection against dust and splashing
water from all directions, with internal
No obvious surveillance or distracting
Uniformly covers entire illumination
Provides for easy installation
Automatic on/off switch for added
Provides long-life and low operating
875 nm 40 nm (very faint glow
visible when looking directly into
50 horizontal, 7.5 asymmetric vertical
to 75 m when mounted 4 m (13ft.)
high, with high IR-sensitive camera
(0.01 lux faceplate illumination,
minimum 30% relative response at 880
nm) and high speed lens (f/0.95)
homogeneous illumination with less
than 60% variation (no hot spot at
