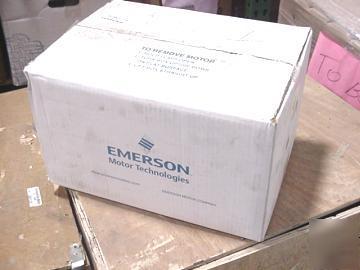

Emerson 6206 gen purp tefc 2 hp c face elec. motor


EMERSON 6206 GEN PURP TEFC 2 HP C FACE ELEC. MOTOR
2 HP General Purpose ELECTRIC MOTOR
Catalog Number: T2C2J14C Model: TO63DCR1648015B
Hp: 2 Phase: 1 Volts: 115/208-230 HZ: 60
Insul Class:F SF: 1.15 SFA: 20.6/10.3-10.3
Max Ambient: 40 NEMA Frame: 145C Encl: TEFC Code: H
Shaft End Bearing: 6205 Opp End Bearing: 6203
NEMA Nom Eff: 81.5 Thermally Protected: NONE Type: CAP START cap run
Locked Rotor Torque 331.9 OZFT
THE CHEAPEST WE FOUND IT ON THE NET WAS $485.82
