Bauer 2 station automatic tire inflator & safety cage
Bauer Dual Station Automatic Aviation Tire Inflator & Safety Cage - New !!!
Automatic Aviation Tire Inflator
Installation, Operation and Service Manual, with Parts Lists, Drawings, and Commercial Literature Included
Made For Department Of The Air Force
Replacement Cost Over $17,700.00 (Model 5012)
The Dual Supply Automatic Tire Inflator is a simple, safe compact pressure-controlling unit that provides an accurate means of simultaneously inflating two aircraft tires of the same pressure. This system uses a Programmable Logic Controller (PLC) to control the tire inflator's filling system, monitor the results with positive visual and audible indication of completion or failure via an annunciation panel with lights and alarms.

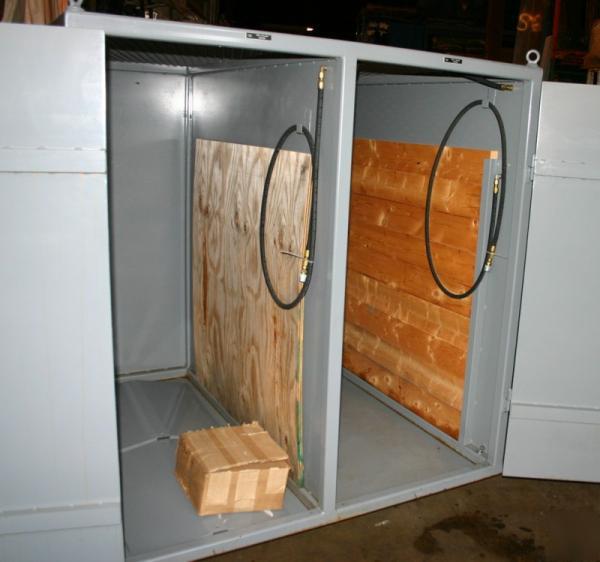

The safety cage provides containment during the filling process to protect against personal injury or damage should the tire rupture or a wheel bolt fail. The Tire Inflation Safety Cage walls are solid steel panels continuously welded and wood lined to absorb any impact. The solid steel doors are uniquely designed with heavy duty double hinges so they must be push in before they can be opened out, preventing them from being the least path of resistance should a failure occur. The roof of the safety cage is reinforced with steel bars to contain large fragments and is covered in heavy metal mesh that allows debris from a failure to travel up away from personnel.
* Dimensions 79" W x 66" D x 67" T
* Recommended Clearance - 3 feet in front of tire inflator controls and 10 feet in front of cage
* Electrical 120/230 VAC, 1 PH, 50/60 Hz
* Compressed Air or Nitrogen Supply - 300 PSIG maximum, 20 CFM
* Two - Output Supplies, Set points 5 - 250 PSIG, Accuracy +-3 PSIG
* Pressure Gauges - Preset Pressure (1), Tire Pressure (1 & 2) all 0-300 PSIG, +-0.50% F.S. Accuracy
* Indicators - Power Switch 1, Fill Selector Switches 2, Tire Filling Pilot Lights 2, Tire Full Pilot Lights 2, Tire Full Alerts 2, Tire Failure Pilot Lights 2, Tire Failure Alarms 2
* Automatic Dual Station Tire Inflator
* Programmable Logic Controller (PLC) tire inflator control
* Positive visual and audible indication of inflation completion or failure
* Annunciation panel with lights and alarms
* Safety Cage walls are solid steel panels continuously welded and wood lined to absorb any impact
* Watts Regulator/Filter with Automatic Drain
* Solid steel doors are uniquely designed with heavy duty double hinges
* Reinforced cage roof with steel bars covered in heavy metal mesh that allows debris to travel up away from personnel
* Ramps for easy tire loading are included inside left side tire cage, See Picture 1.
* 3 - Certificate of Calibration Dated 11/20/00
Descriptions are Intended Only as a Guide and Their Accuracy Should be Checked with the Manufacturer.
