Mag lock for access control #392 locknetics tested
Mag Lock for Access Control #3921 Locknetics TESTED

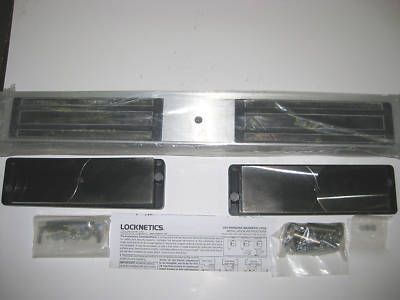

This unit (we are told it is model #392) appears to be NEW with instructions. We removed one from the box to take photos. Tested with 24VDC and works fine.
Being sold as USED. Instructions and hardware/connectors included. This is a heavy item!
Locknetics 392 Double Electro-Magnetic Lock, HEAVY DUTY :
Ideal for high security applications.
Double Lock with Door Status Monitor/ Magnetic Bond Sensor
Door status monitor indicates when door is opened or closed
Magnetic bond sensor indicates when lock is secured or unsecured
1650 pounds of direct holding force per door leaf
Exceeds ANSI/BHMA A156.23 Grade 1 standards
UL listed as an auxiliary lock for a 3 hour fire rated opening and for burglary resistance.
For pairs of hollow metal, aluminum, and wood doors and frames as well as glass doors without a mullion.
Easily interfaces with electronic access control systems, automatic door operators and fire or other hazard sensing systems for egress and emergency egress.
Input voltage: 12 or 24 VCD (dual voltage, field selectable)
Current Draw: .75A @ 12 VCD or .38A @ 24 VCD
Overall size: 2-3/4" H x 20-5/8" L x 1-11/16" D
Fully Automatic Voltage Selection simplifies installation
Modular design employs a standardized circuit board with easy to install connectors, adjustable mounting brackets, integrated mounting screws, and slide-in architectural finish plates
The uniquely designed armature housing holds the armature in place, eliminating the noise and sagging possible with other armatures
The armature housing increases the overall reliability of the product and provides an aesthetically pleasing look over traditional armature mountings, blending into the surrounding environment more easily
The armature housing holds the magnets for the DSM option without having to mount an additional plate to the armature, ensuring quicker, more reliable installation
For more information go to manufacturer s web site:
